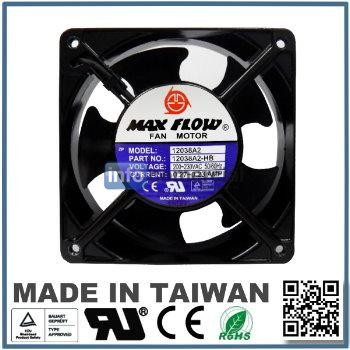

(MF12038A1H-SAT)120mm AC industrial fan
Descripción
(MF12038A1H-SAT)120mm AC industrial fan
Size：120 x 120 x 38mm (4.71 x 4.71 x 1.50inch)
Electric Current Type AC
Mounting Industrial Equipment
Blade Material Plastic
Place of Origin Taiwan
Brand Name MAX-FLOW
Model Number MF12038A1H-SAT
Voltage 110/120 V
Power 19/23 W
Air Volume 84/105 CFM
Speed 2700/3100 rpm
Freg 50/60 Hz
Certification CE,ROHS,UL,TUV
-----------------------------------------------------------
Size：120 x 120 x 38mm (4.71 x 4.71 x 1.50inch)
Motor：Shaded Pole
Frame：Aluminum Die-Cost
Impeller：PBT + 30% Fiber Glass. UL94V-0
Lead Wire：1007# 22AWG. UL/CSA
Insulation Resistance：
Min 10 M 0hm at 500VDC Between Terminal and the Frame
Dielectric Strength：1 min at 1,500VAC 50/60Hz
Bearing Type：B: 2 Ball Bearing. S: Sleeve Bearing
Operating Temp：Ball Bearing: Within -20 ~ 80°C Sleeve Bearing: Within -10 ~ 56°C
Life Expectancy：Ball Bearing: 50,000 hours at 60C
Sleeve Bearing: 20,000 hours at 45°C
Net Weight：520 grams
