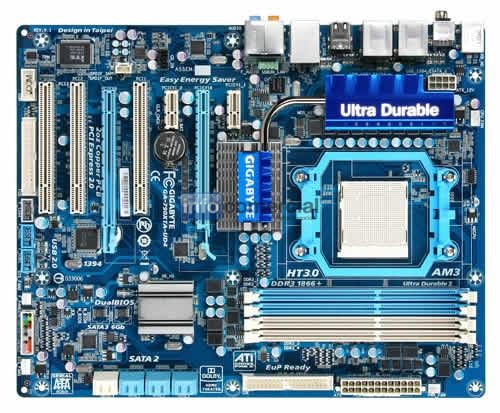

Descripción
GA-790XTA-UD4 (rev. 1.0) Help AMD 790X + SB750 Chipset Supports new generation of AMD Phenom™II X6 processors Ultra Durable 3 Technology with copper cooled quality for lower working temperature Revolution energy saving design with Easy Energy Saver t
CPU
Support for Socket AM3 processors: AMD Phenom™ II processor / AMD Athlon™ II processor
Hyper Transport Bus
5200 MT/s
Chipset
North Bridge: AMD 7 0X
South Bridge: AMD SB750
Memory
4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR3 1866(OC)(Note 2)/ 33/66 MHz memory modules
Audio
Realtek ALC88 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for Dolby Home Theater
Support for S/PDIF In/Out
Support for CD In
LAN
1 x Realtek 8111D chip (/0/00 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 3)
1 x PCI Express x16 slot, running at x8 (PCIEX8) (Note 3)
(The PCIEX16 and PCIEX8 slots conform to PCI Express 2.0 standard.)
2 x PCI Express x1 slots
3 x PCI slots
Multi-Graphics Technology
Support for ATI CrossFireX™ technology
Storage Interface Chipset:
1 x IDE connector supporting ATA- 3/0/66/33 and up to 2 IDE devices
6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5, RAID , and JBOD
Marvell 128 chip:
2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices
Support for SATA RAID 0 and RAID 1
JMicron JMB362 chip:
2 x eSATA 3Gb/s connectors on the back panel supporting up to 2 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, and JBOD
iTE IT8720 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB Chipset:
Up to USB 2.0/1.1 ports (6 on the back panel, 4 via the USB brackets connected to the internal USB headers)
NEC chip:
Up to 2 USB 3.0/2.0 ports on the back panel
IEEE 4 T.I. TSB43AB23 chip
Up to 3 IEEE 4a ports (2 on the back panel, 1 via the IEEE 4a bracket connected to the internal IEEE 4a header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
6 x SATA 3Gb/s connectors
2 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan header
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
1 x IEEE 4a header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x clearing CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x optical S/PDIF Out connector
1 x coaxial S/PDIF out connector
6 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
2 x IEEE 4a port
2 x eSATA 3Gb/s ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
ITE IT8720 chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control (Note 4)
BIOS
2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune (Note 5)
Support for Easy Energy Saver
Support for Time Repair
Support for Q-Share
Bundle Software
Norton Internet Security (OEM version)
Operating System
Support for Microsoft Windows 7/ Vista/ XP
Form Factor
ATX Form Factor. 30.5cm x 24.4cm
Note (Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) To reach DDR3 1866 MHz or above, you must install two memory modules and install them in the DDR3_3 and DDR3_4 memory sockets.
(Note 3) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When PCIEX8 is populated with a PCI Express graphics card, the PCIEX16 slot will operate at up to x8 mode.
(Note 4) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
(Note 5) Available functions in EasyTune may differ by motherboard model.
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Due to most hardware/software vendors no longer offer support for Win X/ME. If some vendors still has Win X/ME drivers available, we will publish on website.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
