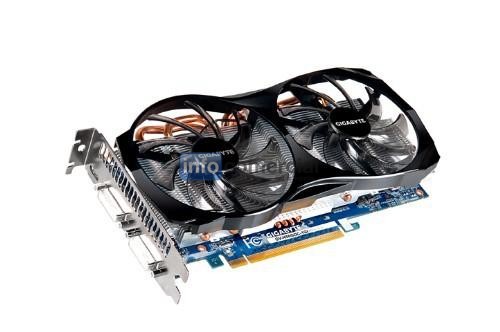

PLACAS DE VIDEOS GEFORCE GIGABYTE 560GTX GV-N56GOC-1GI

Precio:Consultar

Descripción

GIGABYTE Ultra Durable VGA Series
GIGABYTE Ultra Durable VGA Series
Powered by NVIDIA GeForce GTX 560 GPU
Integrated with industry's best 1GB GDDR5 memory and 256-bit memory interface
Features Dual link DVI-I*2 / mini HDMI with HDCP protection
GIGABYTE WindForceTM 2X cooling design
Support NVIDIA 3D VisionTM and SLI technologies
Minimum 500W or greater system power supply with two 6-pin external power connectors

Ultra Durable VGA™
Features & Benefits
GPU Temperature 5%~% down
Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU and memory temperature by doubling the copper inner layer of PCB. GIGABYTE Ultra Durable VGA can lower GPU temperature by 5% to %.
Overclocking Capability %~30% Up
Ultra Durable VGA board reduces voltage ripples in normal and transient state, thus effectively lowers noises and ensures higher overclocking capability. GIGABYTE Ultra Durable VGA graphic accelerators improve overclocking capability by % to 30%.
Power Switching Loss %~30% Down
Ultra Durable VGA board allows more bandwidth for electron passage and reduces circuit impedance. The less circuit impedance, the more stable flow of current and can effectively improve power efficiency. GIGABYTE Ultra Durable VGA can lower power switching loss by % to 30%.

WindForce 2X Anti-turbulence-Parallel inclined
WINDFORCE™ 2X parallel-inclined fin design is equipped with 2 ultra quiet PWM fans and two copper heat pipes to enlarge air channel on the graphics card vents and creates a more effective airflow system in chassis.
more

Gold plated HDMI

Gold plated, durable large contact area connectors have been used for optimum signal transfer between connections

CUDA Technology
NVIDIA® CUDA™ technology unlocks the power of the hundreds of cores in your NVIDIA® GeForce® graphics processor (GPU) to accelerate some of the most performance hungry computing applications. The CUDA™ technology already adopted by thousands of programers to speed up those performance hungry computing applications.

PhysX Technology
NVIDIA® PhysX™ is the next big thing in gaming!Delivering physics in games is no easy task. It's an extremely compute-intensive environment based on a unique set of physics algorithms that require tremendous amounts of simultaneous mathematical and logical calculations. The best way to get real-time physics, such as explosions that cause dust and debris, characters with life-like motion or cloth that drapes and tears naturally is with an NVIDIA®PhysX™-ready GeForce® processor. PhysX software is widely adopted by over 150 games, is used by more than ,000 registered users and is supported on Sony Playstation 3, Microsoft Xbox 360, Nintendo Wii and PC. PhysX™ technology will take gaming to a whole new level.

SLI™ Technology
Delivers up to 2X the performance of a single GPU configuration for unparalleled gaming experiences by allowing two graphics cards to run in parallel. The must-have feature for performance PCI Express graphics, SLI dramatically scales performance on 60 top PC games.

NVIDIA® 3D Vision™
NVIDIA® 3D Vision™ brings a fully immersive stereoscopic 3D experience to the PC. A combination of high-tech wireless glasses and advanced software 3D Vision transforms hundreds of PC games into full stereoscopic 3D. Users can even watch 3D movies and 3D digital photographs in crystal-clear quality.

Microsoft Window7
Microsoft Windows 7 is the next generation operating system that will mark a dramatic improvement in the way the OS takes advantage of the graphics processing unit (GPU) to provide a more compelling user experience. By taking advangate of the GPU for both graphics and computing, Windows 7 will not only make todays's PCs more visual and more interactive but also ensure that they have the speed and responsiveness customers want

RoHS Compliant
As a citizen of the global village, GIGABYTE exert ourselves to be a pioneer in environment care. Give the whole of Earth a promise that our products do not contain any of the restricted substances in concentrations and applications banned by the RoHS Directive, and are capable of being worked on at the higher temperatures required for lead free solder. One Earth and GIGABYTE Cares!
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
Chipset GeForce GTX 560
Core Clock 830 MHz
Shader Clock 1660 MHz
Memory Clock 4008 MHz
Process Technology 40 nm
Memory Size 1 GB
Memory Bus 256 bit
Card Bus PCI-E 2.0
Memory Type GDDR5
DirectX 11
OpenGL 4.1
PCB Form ATX
Digital max resolution 2560 x 1600
Analog max resolution 2048 x 1536
Multi-view 2
Tools N/A
I/O HDMI*1 (by adapter)
DisplayPort* (by adapter)
mini HDMI*1
mini DisplayPort*
DVI-I*2
DVI-D*
D-sub*1 (by adapter)
Card size H43 mm x L238 mm x W 0 mm
Power requirement Minimum 500W or greater system power supply with two 6-pin external power connectors
