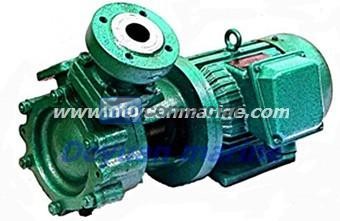

W(Z) series marine self-priming vortex pump

　marine self-priming vortex pump
China Deyuan Marine Fitting Co.,ltd are leading supplier of marine pumps,such as marine diesel emergency fire pump,vortex marine water pump,marine centrifugal water pump etc.Pls contact us for more details.
W(Z) series marine self-priming swirl pumps are applicable to pumping clear water and light eroding medium.
The pump rotates clockwise viewed from motor.
Type 50HZ,3phase,380V main technical parameter Motor power
(kw) Remarks
Capacity
(m3/h) Head
(m) Speed
(r/min) NPSHR
(m) Shaft power
(kw)
1W-3Z 3 10 1450 6 0.42 0.75 No exhaust
1WZ-3Z 3 10 1450 6 0.42 0.75 Self-priming
1W-0.9Z 1.8 25.5 1450 3.5 0.625 1.5 No exhaust
1WZ-0.9Z 1.8 25.5 1450 3.5 0.625 1.5 Self-priming
25WZ-105Z 1 105 2900 4 1.93 3 Self-priming

&&&&&&:
